Clean Room Modular Soft Wall Clean Booth

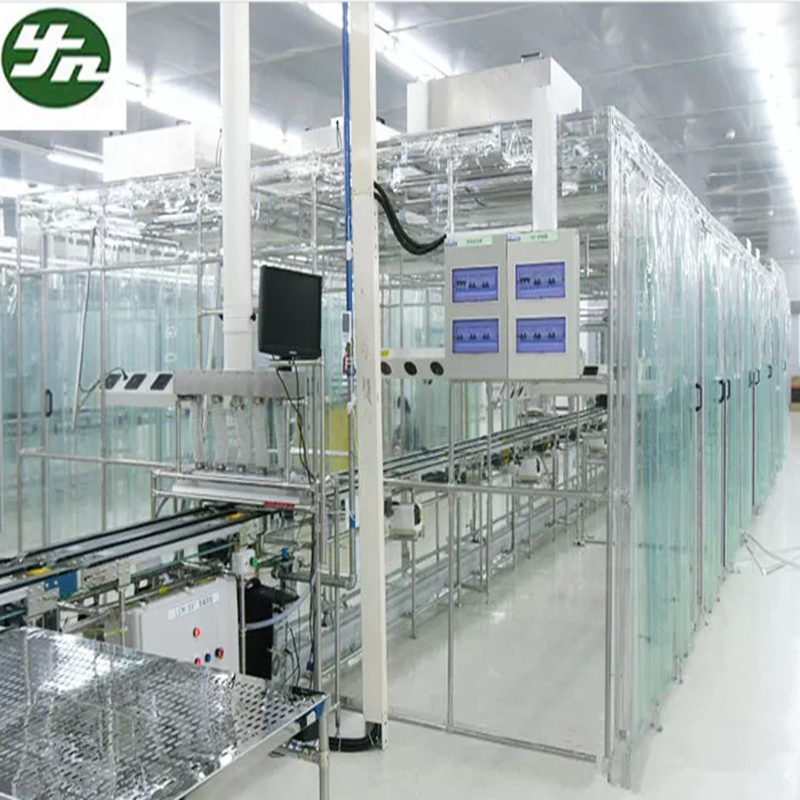

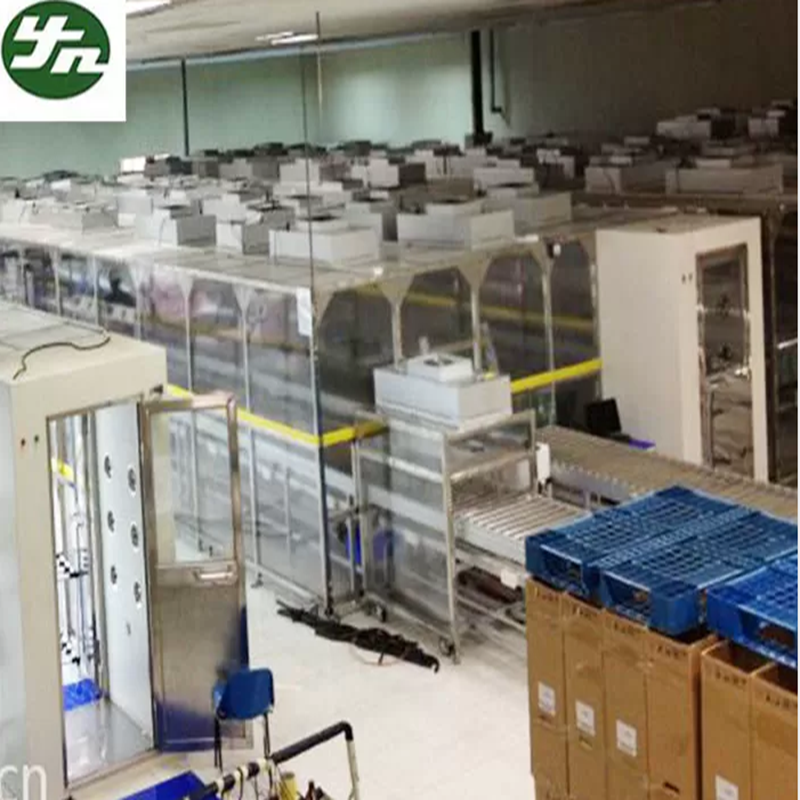

Clean booth, also called portable modular mini cleanroom, is a self-contained localized dust-free enclosure built to deliver controlled ultra-clean working zones within standard factory or laboratory spaces. It adopts modular frame + top FFU fan filter units to generate vertical laminar airflow, continuously sweeping airborne particles out of the workspace and maintaining positive internal pressure to block external contamination ingress.
Two mainstream types available:
- Soft Wall Clean Booth: Anti-static transparent PVC curtain enclosure, low cost, easy disassembly & movement
- Hard Wall Clean Booth: Rigid acrylic / tempered glass / cleanroom sandwich panel walls, full airtight sealing, stable for high-grade GMP sterile environments
Main Structure & Material Composition
1. Support Frame System
- Standard frame: Anodized industrial aluminum alloy profile, lightweight, high rigidity, anti-rust, non-shedding particles
- Upgrade option: SUS304 stainless steel square tube frame, for frequent disinfection medical/pharma workshops
- Optional moving casters with brake locks for whole-booth relocation
2. Enclosure Wall Materials (Two Types)

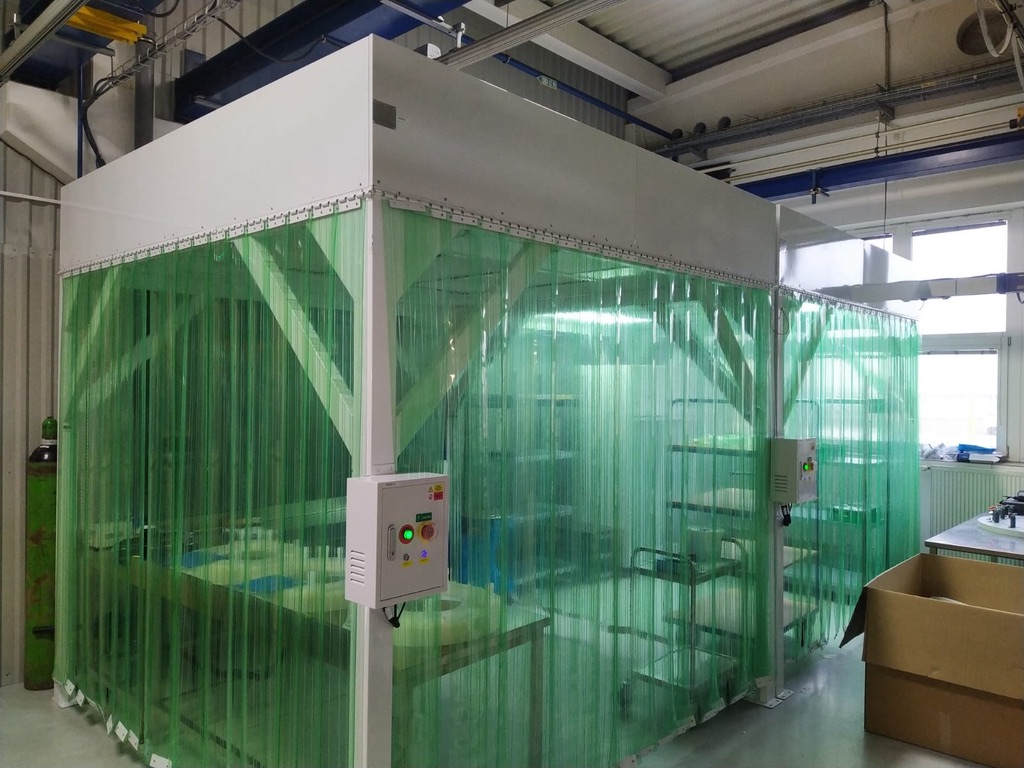

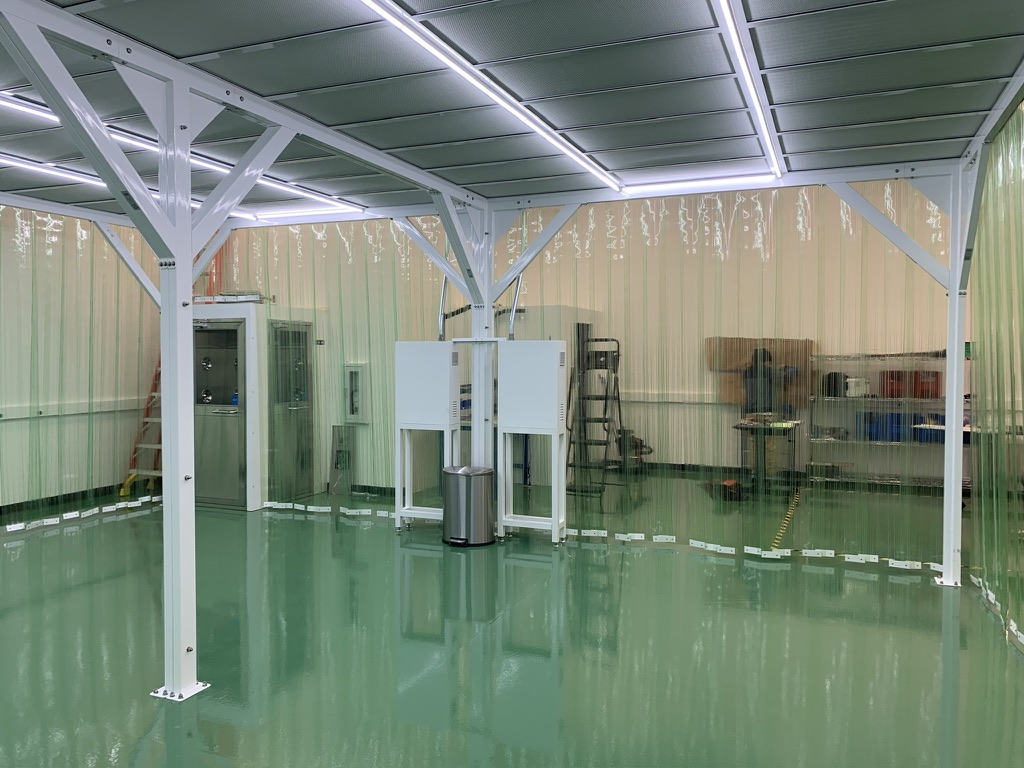

Soft Wall Version
- Wall material: Anti-static transparent PVC vinyl curtain, good electrostatic dissipation, clear visibility for internal operation observation
- Access design: Curtain sliding door or vertical strip curtain passage for staff & material transfer
- Advantage: Ultra-low cost, fast assembly, easy to dismantle and resize
Hard Wall Version
- Wall options: High-transparency acrylic sheet, tempered safety glass, cleanroom EPS/rockwool sandwich panels
- Door: Single swing door / sliding airtight door with magnetic sealing strips, reserved observation windows
- Advantage: Complete airtight isolation, stable pressure difference control, resistant to alcohol & hydrogen peroxide disinfection, meets strict GMP validation requirements

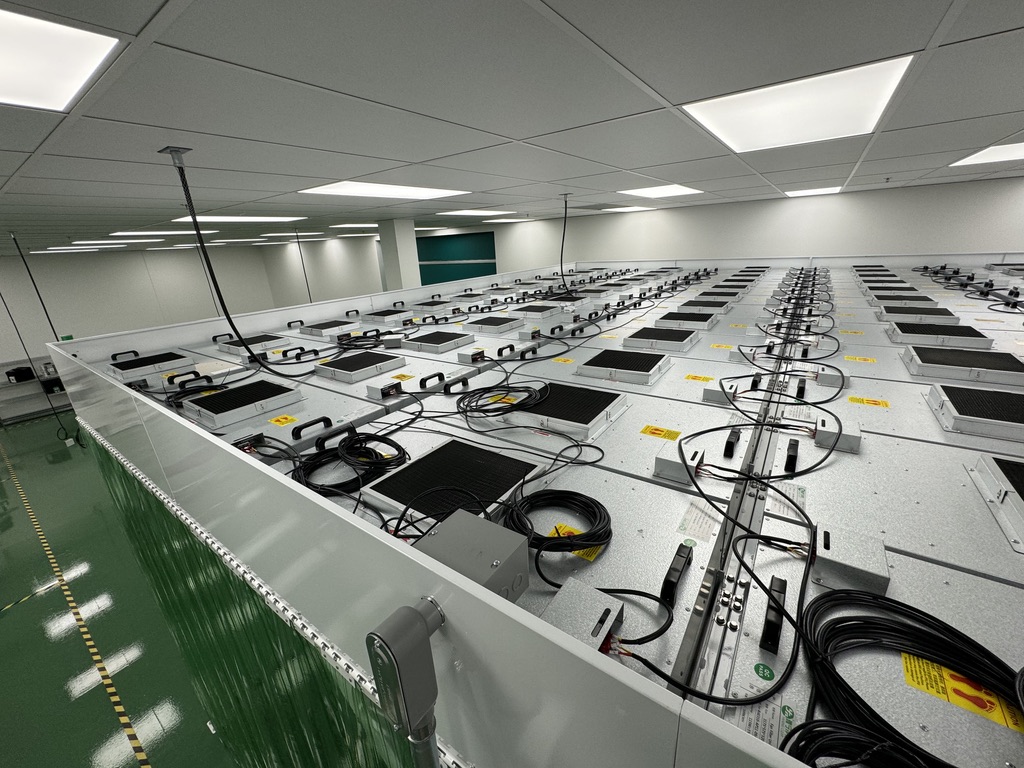

3. Core Purification Air System – FFU Fan Filter Units
- Double-stage filtration: Primary pre-filter + H13/H14 HEPA mini-pleat filter (99.99%–99.995% efficiency for 0.3μm particles)
- Low-noise centrifugal fan, adjustable wind speed to control vertical laminar flow velocity at 0.3–0.45m/s
- Continuous vertical downward unidirectional airflow eliminates particle dead zones inside the booth
- Differential pressure gauge optional to monitor filter clogging status for scheduled replacement
4. Auxiliary Standard Configurations
- Cleanroom anti-dust LED purification lights embedded into ceiling grid
- Optional built-in static pass box / dynamic air shower pass box for material transfer
- UV germicidal lamp for off-hours surface disinfection
- Anti-static PVC clean floor mat for static-sensitive electronics workshops
- HMI control panel: Fan speed regulation, timing switch, filter replacement reminder alarm
Core Product Advantages
-
Significant Cost & Time Savings
Only 30–60% investment of a full permanent cleanroom; on-site assembly finished within 1–3 days, no complicated civil engineering required.
-
Fully Modular & Flexible Layout
Customizable length, width, height; can expand, split or relocate the booth freely according to production line adjustment; small single-workstation booth or large continuous assembly line booth both supported.
-
Stable Laminar Flow & Reliable Cleanliness
Positive pressure isolation design prevents external dust intrusion; vertical laminar flow carries internal particles out rapidly, stably maintaining ISO5 (Class100) ~ ISO8 (Class100,000) cleanliness standards.
-
Dual Options for Different Application Scenarios
- Soft wall: Temporary production lines, low-to-medium cleanliness workshops, small batch sampling inspection
- Hard wall: Permanent sterile processing, pharmaceutical compounding, hospital local operating zones, semiconductor precision assembly requiring strict airtightness
-
Easy Sanitation & Low Maintenance
Smooth non-porous wall & frame surface resists disinfectant corrosion, no hidden sanitary dead corners; FFU filter replacement without disassembling the whole booth, simple daily upkeep.
-
ESD Anti-Static Protection
All soft curtain / hard acrylic wall materials add anti-static agent, avoid electrostatic damage to microchips, optical components and precision electronic products.
More sizes for your option:
| Model item | |||||
| YN-CS2000 | YN-CS3000 | YN-CS5000 | YN-CS10000 | ||
| Size(mm) | 2100*3100*2400 | 3100*4100*2600 | 5100*5100*2780 | 11000*6100*2500 | |
| Working Area | 2000*3000*2000 | 3000*4000*2200 | 5000*5000*2380 | 10000*6000*2100 | |
| Material | Framework | ||||
| Around | |||||
| Clean Class Level | 100(ISO5) | 1000(ISO6) | 10,000(ISO7) | 100,000(ISO8) | |
| HEPA filter | Size(mm) | 1220*610*69 | 1170*570*69 | 1220*610*69 | 1220*610*69 |
| Efficiency (%) | 99.99 | 99.99 | 99.99 | 99.99 | |
| Air flow (m3/h) | 5040 | 4610 | 4900 | 12000 | |
| Pre filter | Size(mm) | 495*495*21 | |||
| Motor Spec | Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Noise(dB) | 63 | 62 | 63 | 63 | |
| Normally depends on customized design. | |||||
