Hard wall Modular clean booth
Two mainstream types available:
- Soft Wall Clean Booth: Anti-static transparent PVC curtain enclosure, low cost, easy disassembly & movement
- Hard Wall Clean Booth: Rigid acrylic / tempered glass / cleanroom sandwich panel walls, full airtight sealing, stable for high-grade GMP sterile environments
Main Structure & Material Composition
1. Support Frame System
- Standard frame: Anodized industrial aluminum alloy profile, lightweight, high rigidity, anti-rust, non-shedding particles
- Upgrade option: SUS304 stainless steel square tube frame, for frequent disinfection medical/pharma workshops
- Optional moving casters with brake locks for whole-booth relocation
2. Enclosure Wall Materials (Two Types)
Soft Wall Version
- Wall material: Anti-static transparent PVC vinyl curtain, good electrostatic dissipation, clear visibility for internal operation observation
- Access design: Curtain sliding door or vertical strip curtain passage for staff & material transfer
- Advantage: Ultra-low cost, fast assembly, easy to dismantle and resize

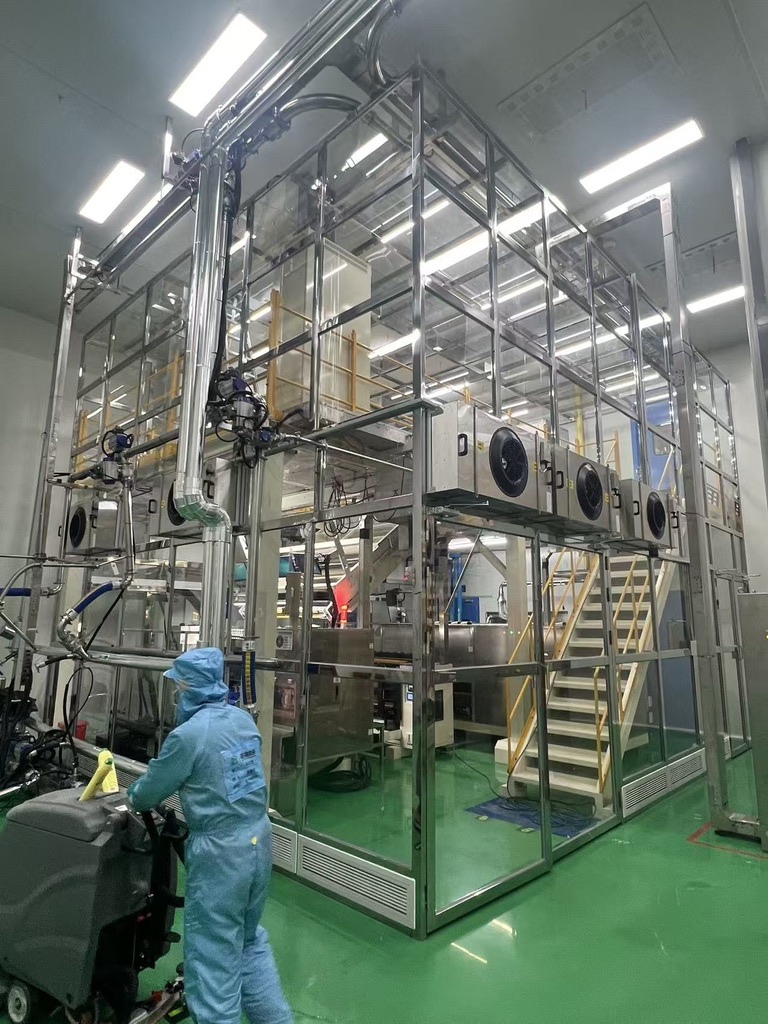

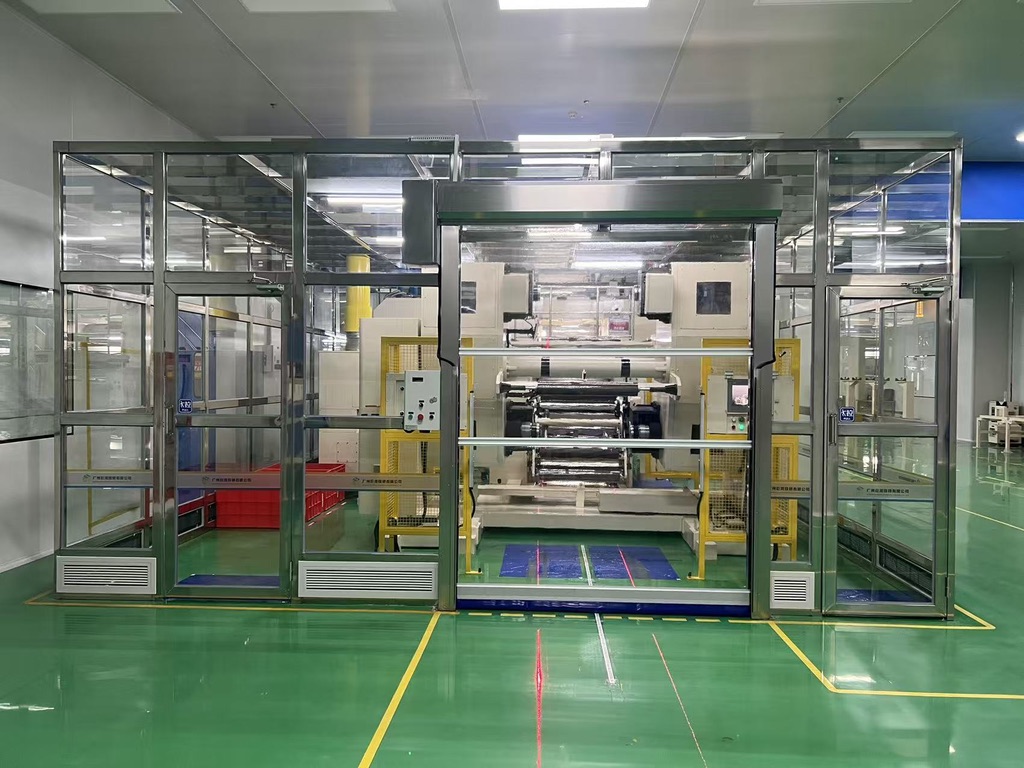

Hard Wall Version
- Wall options: High-transparency acrylic sheet, tempered safety glass, cleanroom EPS/rockwool sandwich panels
- Door: Single swing door / sliding airtight door with magnetic sealing strips, reserved observation windows
- Advantage: Complete airtight isolation, stable pressure difference control, resistant to alcohol & hydrogen peroxide disinfection, meets strict GMP validation requirements
3. Core Purification Air System – FFU Fan Filter Units
- Double-stage filtration: Primary pre-filter + H13/H14 HEPA mini-pleat filter (99.99%–99.995% efficiency for 0.3μm particles)
- Low-noise centrifugal fan, adjustable wind speed to control vertical laminar flow velocity at 0.3–0.45m/s
- Continuous vertical downward unidirectional airflow eliminates particle dead zones inside the booth
- Differential pressure gauge optional to monitor filter clogging status for scheduled replacement
4. Auxiliary Standard Configurations
- Cleanroom anti-dust LED purification lights embedded into ceiling grid
- Optional built-in static pass box / dynamic air shower pass box for material transfer
- UV germicidal lamp for off-hours surface disinfection
- Anti-static PVC clean floor mat for static-sensitive electronics workshops
- HMI control panel: Fan speed regulation, timing switch, filter replacement reminder alarm
Core Product Advantages
-
Significant Cost & Time Savings
Only 30–60% investment of a full permanent cleanroom; on-site assembly finished within 1–3 days, no complicated civil engineering required.
-
Fully Modular & Flexible Layout
Customizable length, width, height; can expand, split or relocate the booth freely according to production line adjustment; small single-workstation booth or large continuous assembly line booth both supported.
-
Stable Laminar Flow & Reliable Cleanliness
Positive pressure isolation design prevents external dust intrusion; vertical laminar flow carries internal particles out rapidly, stably maintaining ISO5 (Class100) ~ ISO8 (Class100,000) cleanliness standards.
-
Dual Options for Different Application Scenarios
- Soft wall: Temporary production lines, low-to-medium cleanliness workshops, small batch sampling inspection
- Hard wall: Permanent sterile processing, pharmaceutical compounding, hospital local operating zones, semiconductor precision assembly requiring strict airtightness
-
Easy Sanitation & Low Maintenance
Smooth non-porous wall & frame surface resists disinfectant corrosion, no hidden sanitary dead corners; FFU filter replacement without disassembling the whole booth, simple daily upkeep.
-
ESD Anti-Static Protection
All soft curtain / hard acrylic wall materials add anti-static agent, avoid electrostatic damage to microchips, optical components and precision electronic products
| Model | YN-CS-23B | YN-CS-34A | YN-CS-34B | YN-CS-68C |
| External Size(W×D×H)mm | 2100×3100×2590 | 3100×4100×2590 | 3100×4100×2590 | 6100×8100×2590 |
| Internal Size(W×D×H)mm | 2000×3000×2240 | 3000×4000×2240 | 3000×4000×2240 | 6000×8000×2240 |
| Clean Class Level | 1000Class(ISO6) | 100Class(ISO5) | 1000Class(ISO6) | 10000Class(ISO7) |
| Air Velocity | 0.3-0.5m/s | 0.3-0.5m/s | 0.3-0.5m/s | 0.3-0.5m/s |
| Noise | ≤65dB | ≤65dB | ≤65dB | ≤65dB |
| Vibration Half Peak | ≤5um | ≤5um | ≤5um | ≤5um |
| Light | 40W×2 | 40W×4 | 40W×4 | 40W×8 |
| Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Material | Framework: Epoxy powder coated steel/ Stainless steel/Aluminum
Wall: Anti-static strip curtain/Soft air curtain/Plexiglas |
|||
Pre assembly before shipment
