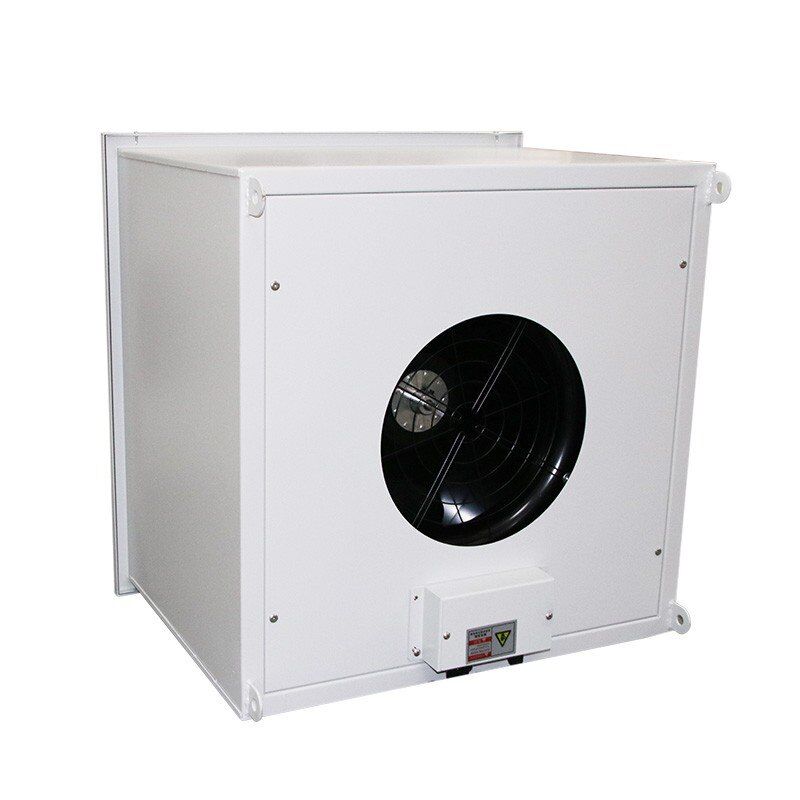

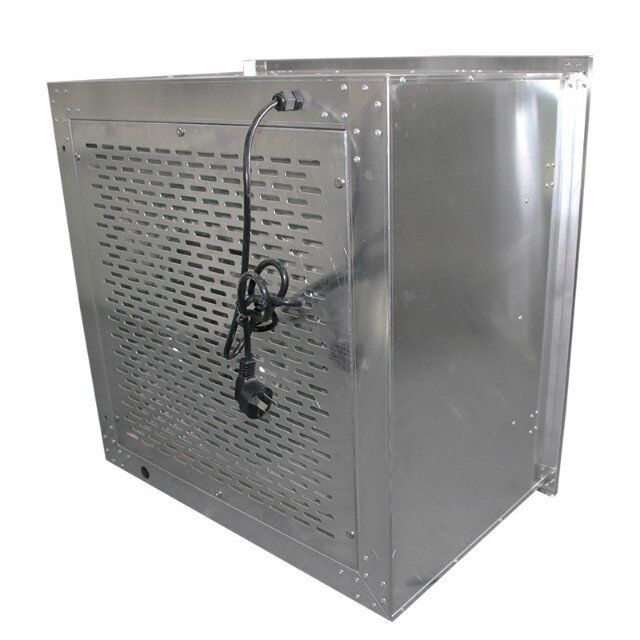

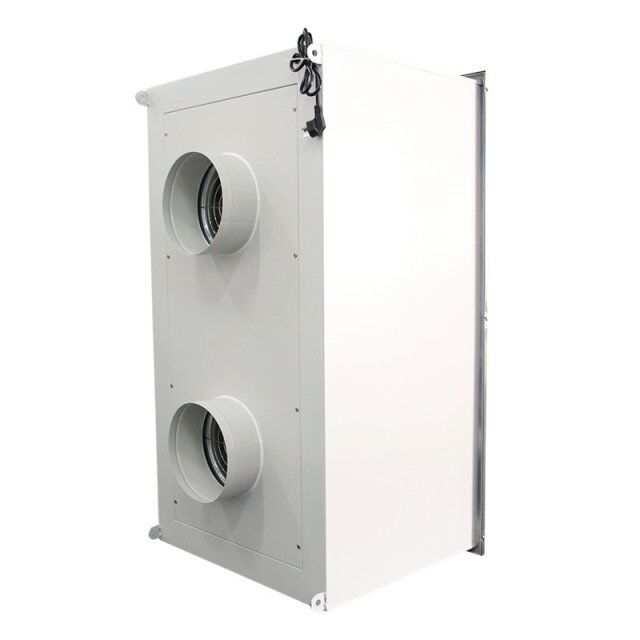

Clean Room AC HEPA Filter Box Air Outlet
Parameter
Standard Model Technology Parameter:
|
Cabinet Size |
Filter Size |
Flange Size |
Rated Air flow(m3/h) |
||
|
534×534×380 |
484×484×96 | 320*200 | 500 | ||
|
660×660×380 |
610×610×96 | 400*200 | 1000 | ||
|
915×610×380 |
915×610×96 | 500*200 |
1500 |
||
| 1220×610×380 | 1220×610×96 | 500*300 |
2000 |

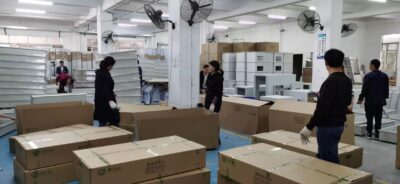

Assembly work shop
Export package
