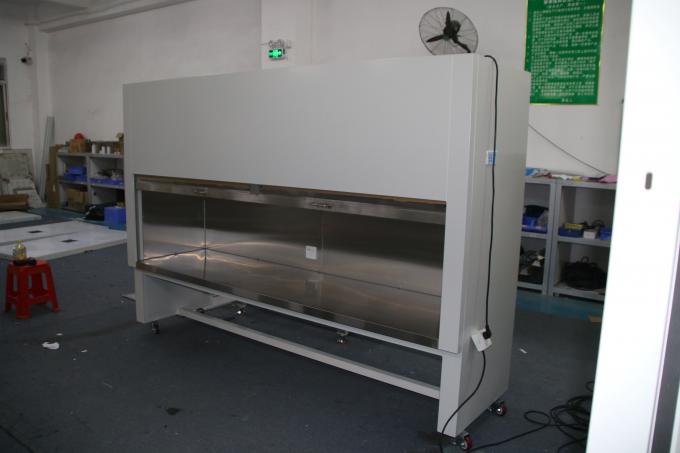

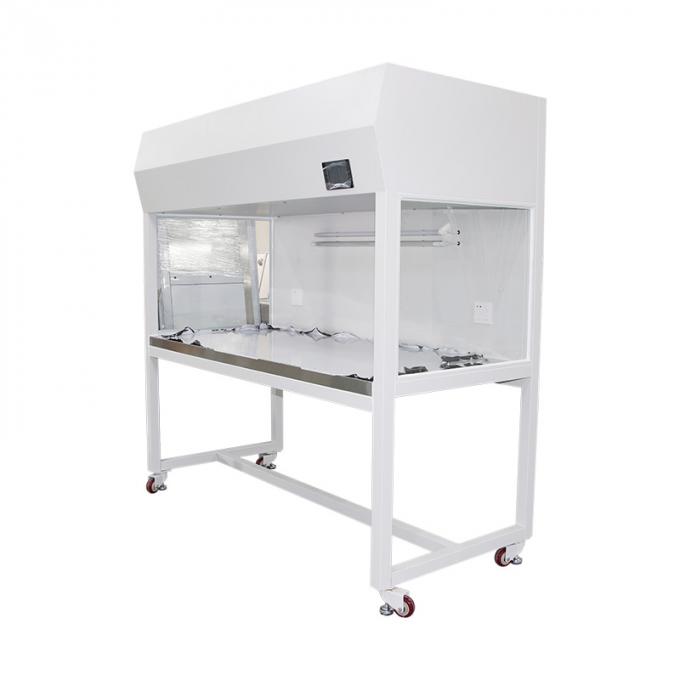

Laminar Air Flow Horizental Clean Bench
Technical Parameters or customized size is welcome.
Item Single Level Hundred Workbench Small Double Level Hundred Level Workbench Large Double Level Hundred Level Workbench
Dimensions :W×D×Hmm 960×780×1580 1200×820×1580 1500×900×1580
Working size :W×D×Hmm 940×600×650 1180×600×650 1480×600×650
Cleanliness class 100 U.S. Federal Standards
Rated air volume m3/h: 1200 1800 2300
Average wind speed: 0.3-0.6m/s
Filtration efficiency :H13-H14
Illuminance :≥300IX
Power consumption: 280W 405W 490W
Noise ≤65dB
Power :220V/50HZ
Fluorescent lamp specifications and quantity: 20W×1 30W×1 40W×1
Material The box body is cold plate sprayed (stainless steel), the table top is sanded stainless steel
