Air Shower Pass Box with Large Volume
Air shower pass box parameter or customized size depends on your

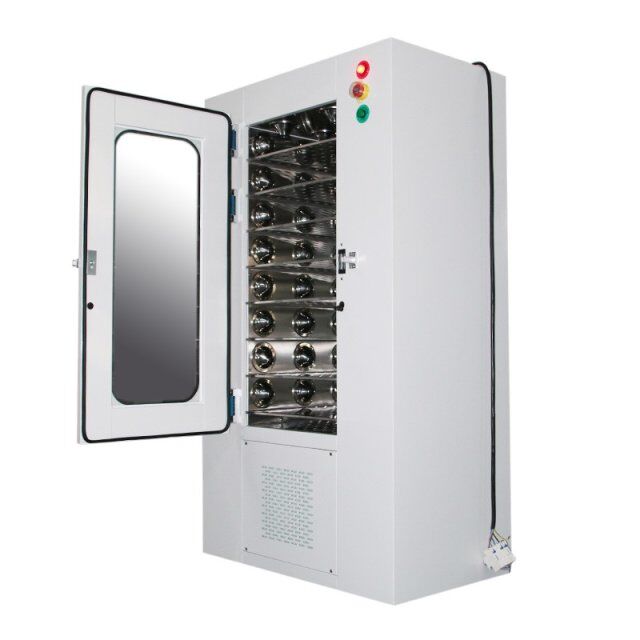

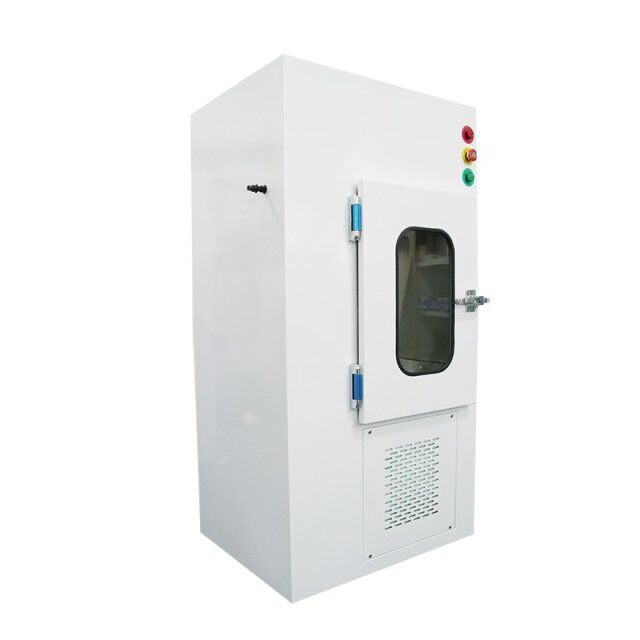

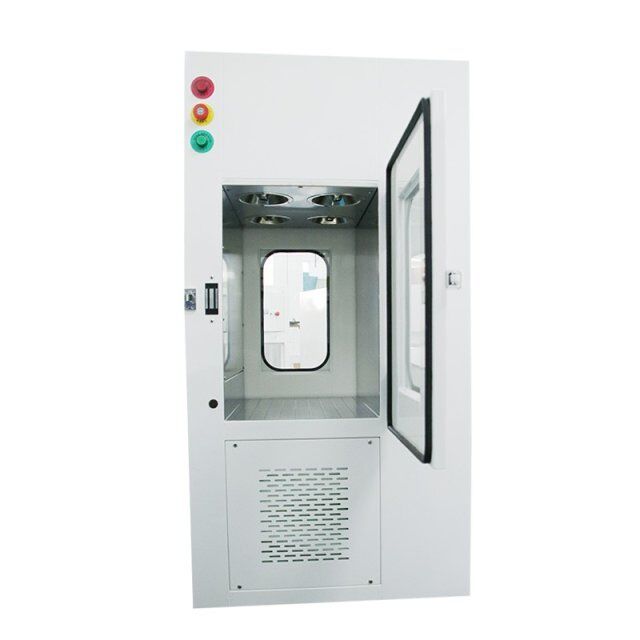

The air shower pass box is an auxiliary equipment of the clean room. It is mainly used for the transfer of small items between the clean area and the clean area or between the clean area and the non-clean area to reduce the number of door openings in the clean room. The pollution of the district is reduced to a minimum
requirements:
| Outline dimension W×D×Hmm | 940×600×1450 | 1090×750×1500 | 1140×800×1550 |
| Internal dimension W×D×Hmm | 600×600×600 | 750×750×750 | 800×800×800 |
| Pre filter size mm | 570×290×17(1pcs) | 745×290×17(1pcs) | 795×290×17(1pcs) |
| Hepa size mm | 610×610×120mm | 610×610×120mm | 610×610×120mm |
| Fan power and power | 380V/50Hz/
750W |
380V/50Hz/
750W |
380V/50Hz/
750W |
| Fan delivery m3/h | 1200 | 1200 | 1200 |
| Fan speed r/min | 2800 | 2800 | 2800 |
| The number of nozzle | 4pcs | ≥4pcs | ≥4pcs |
| Filter efficiency | 99.99%@0.3um | 99.99%@0.3um | 99.99%@0.3um |
