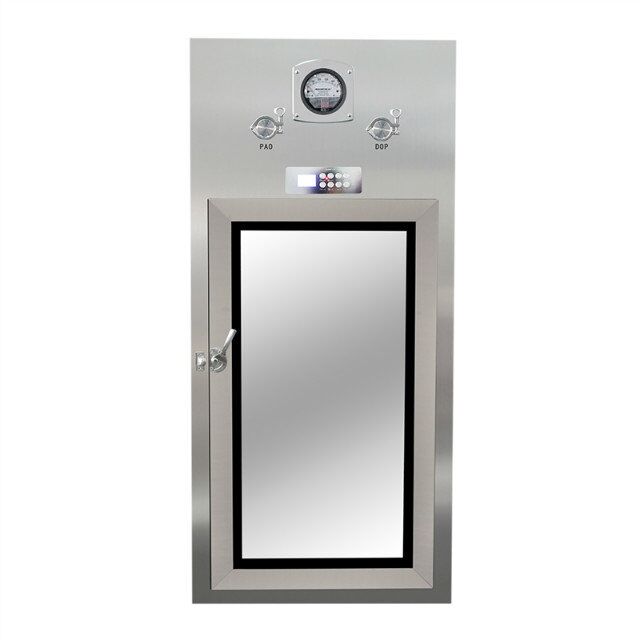

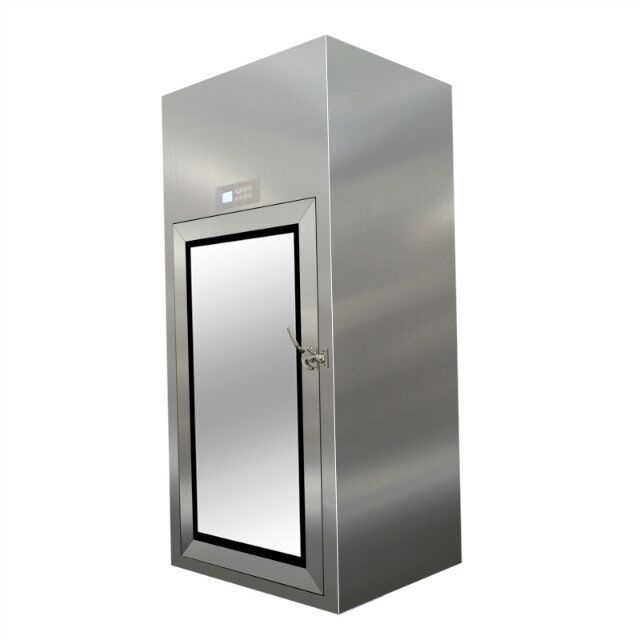

Phamaceutical Dynamic Pass Through Box
GMP requirements
1. The surface of the equipment should be smooth, free of burrs, dust, and easy to clean. All gaps should be sealed with food-grade neutral sealant;
2. The equipment must have suitable space for maintenance and overhaul;
3. All wires should be hidden and not exposed;
4. All meters and test instruments need to be calibrated by the statutory department and can be traced to the source

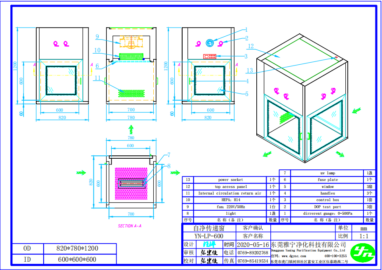

Spec:
OD: 770(W) x 680(D) x 1200(H)mm
ID : 600(W) x 600(D) x 600(H)mm
External Material: GI 1.2mm thick epoxy
powder coat white
Material: SS304 1.2mm thick
Power: 240VAC/1PH/50Hz
Filter: ULPA U15 (99.9995% @ 0.12um)
AC Blower: 1pc
Interlock: Electromagnetic Interlock

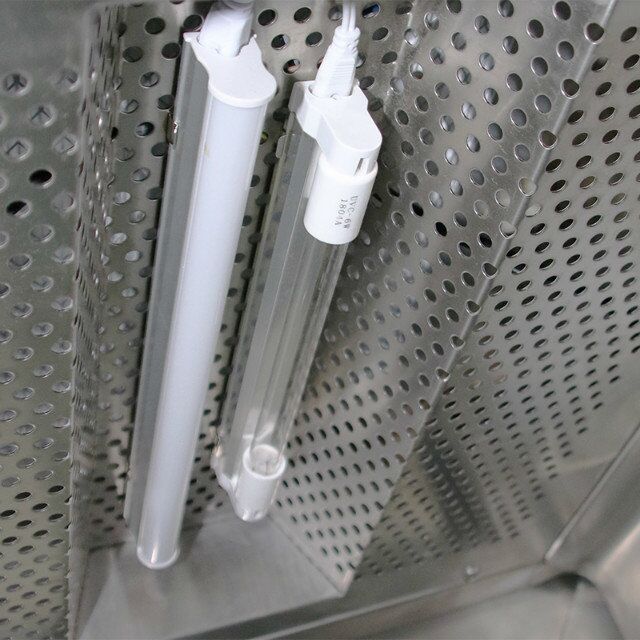

Accessories: Fluorescent light to be mount on
the right side from the "Way In" direction with
acrylic panel flush with the internal SS304

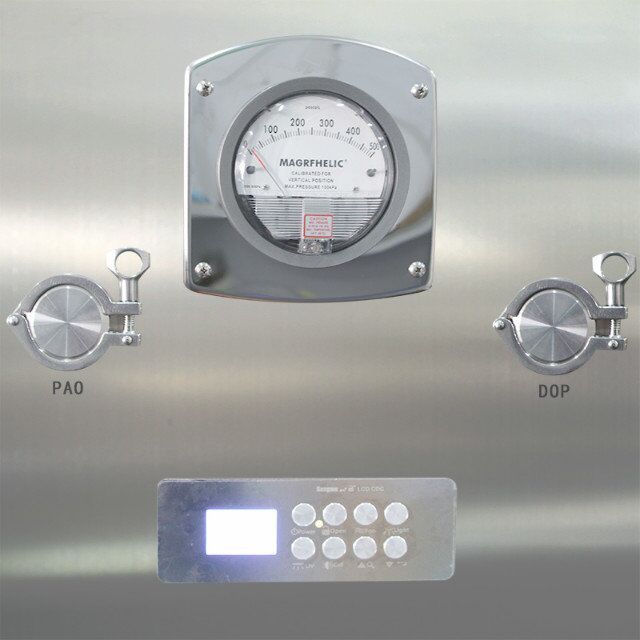

surface, single port inlet for upstream PAO
concentration testing for 8mm OD tubing
insertion size with end cap, DWYER USA
differential pressure gage model 2000-500PA
(0-500Pa range),
