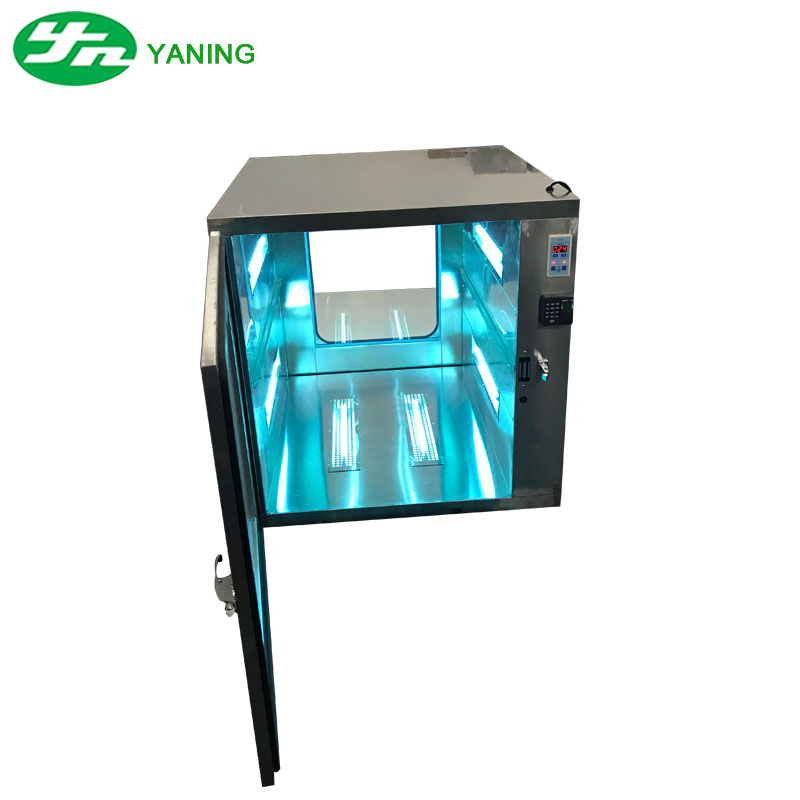

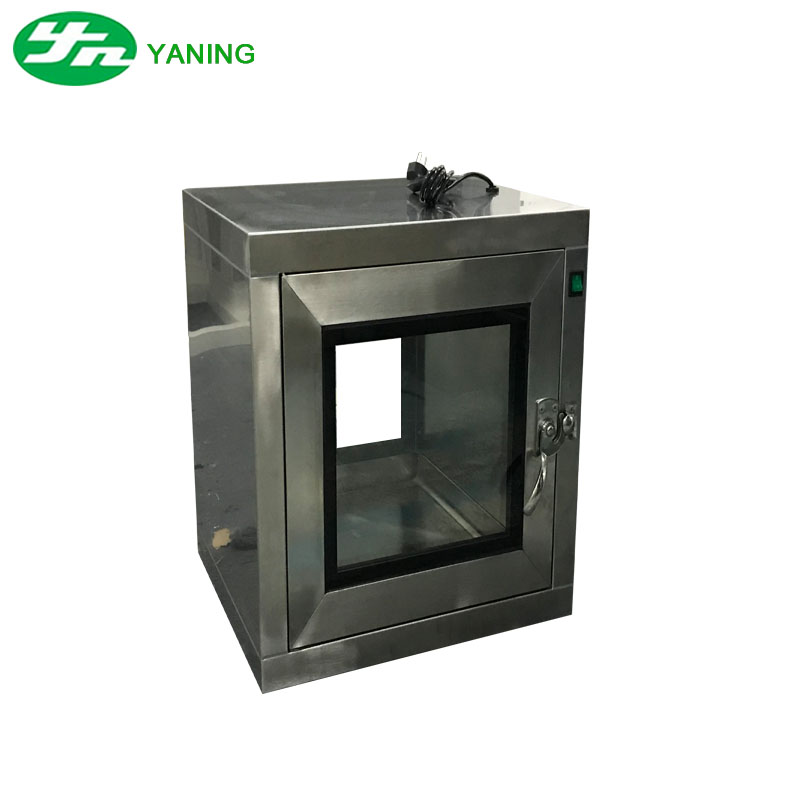

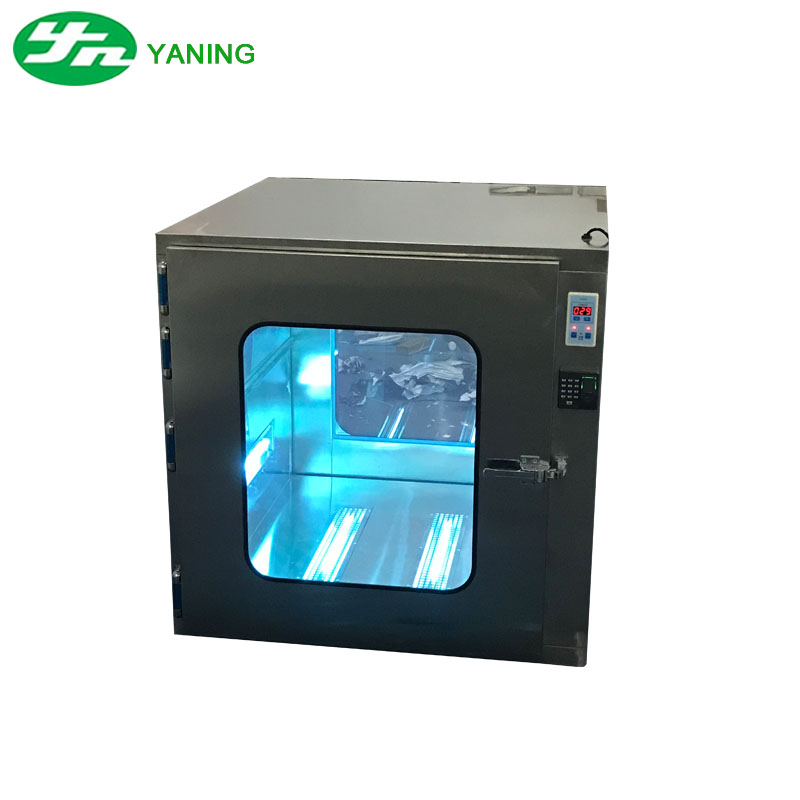

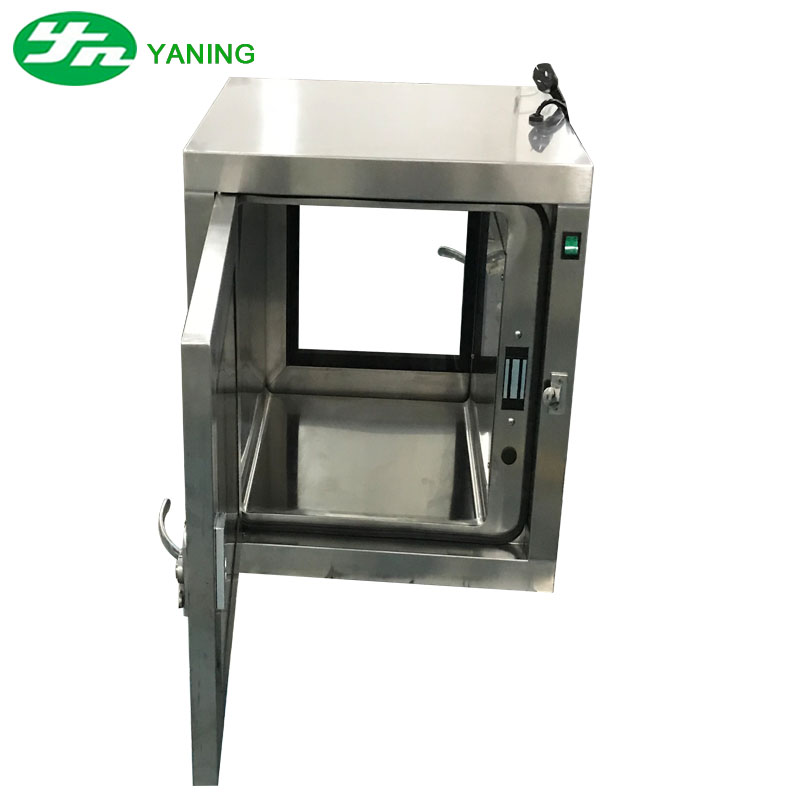

Static SUS304 Pass Through Box for clean room
1,Standard Model Technology Parameter or customized is acceptable
| Model | YN-PB-500 | YN-PB-600 | YN-PB-750 | YN-PB-800 |
| (W×D×H)mm
External Dimension |
670×580×630 | 770×680×730 | 920×830×880 | 970×880×930 |
| (W×D×H)mm
Internal Work Zone |
500×500×500 | 600×600×600 | 750×750×750 | 800×800×800 |
| Cabinet Material | Epoxy powder coated steel / Stainless steel | |||
| Insider Material | Stainless steel | |||
| Interlock system | Mechanical Interlock / Electronic Interlock | |||
| Electronic Interlock Or
UV light Power supply |
110.220Volt/
50 60Hz |
120.220V/
50 60Hz |
220V/50Hz | 220V/50Hz |
2, working principle
⒈Mechanical interlocking device: The internal interlocking is realized in a mechanical form. When one door is opening, another door cannot be open, theres is must be closed one before the other door can be open.
⒉Electronic interlocking device: The internal use of integrated circuits, electromagnetic locks, control panels, indicator lights, etc. to achieve interlocking, when one of the doors is opened, the other door open indicator does not light up, telling that the door cannot be opened, and electromagnetic The locking action realizes interlocking. When the door is closed, the other electromagnetic lock starts to work, and the indicator light will light up, indicating that the other door can be opened.
