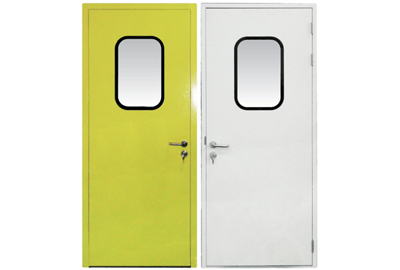

Cleanroom Steel Door
| Name | Material | Remarks |
| Door frame | Thickness of galvanized sheet: 1.2 | Surface treatment: degreasing, napping and then powder coating. |
| Door panel | Thickness of galvanized sheet 1.0 | Surface treatment: degreasing, napping and then powder coating |
| Inside panel | Fillings: paper honeycomb, rock-wool aluminum honeycomb | Flame retardant (optional) |
| Closer | GMT | Grown |
| Observation window | 5mm double hollow tempered glass arc window | 0.8mm lining plate of stainless steel, size:386mm×586mm arc |
| Locks | High-end stainless steel handle lock | |
| Sweeping strip | Sweeping strip of automatic lift | Good elasticity, permanent |
| Surface treatment | Color never fade-less, anti-static coating for surface, color can be customized | |
| Other parts | Stainless steel hinge, silicone seal | |
| General size | Single door: 800mmx2100mm, 900mmx2100mm, 1000mmx2100mm | Door size can be customized according to customer’s requirements |

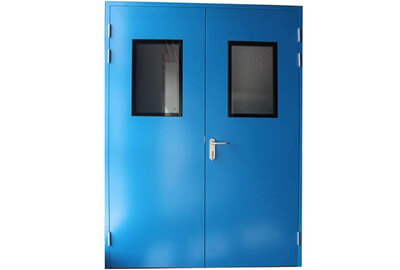

| Double door: 1200mmx2100mm, 1500mmx2100mm, 1800mmx2100mm |
Features: Fireproof, durable, beautiful appearance, neat, flush with wall panels, easy to clean, good tightness.
Applications: Steel doors are widely used in cleanrooms of pharmaceuticals, food, cosmetics, and electronics manufacturing industries.
