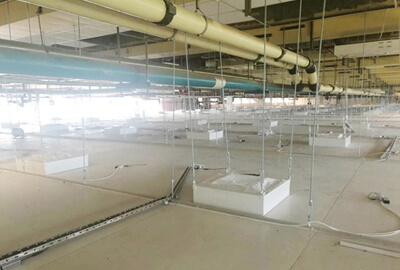

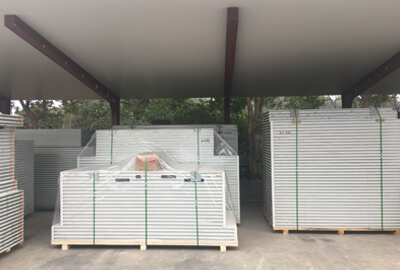

Cleanroom Ceiling Panels
| General Performance | Wall Thickness | 50mm, 60mm, 75mm, 100mm | ||
| Regular Width | 1160mm, 1180mm, 900mm, Non-standard (customized) | |||
| Max Height | 8000mm, Non-standard (customized) | |||
| Main Material | Panel Material | PE, Anti-static, PVDF, Salinization, Stainless steel, Nanometer catelyst antibacterial plate, PVC coating | ||
| Filling Material | Rock wool, paper honeycomb, aluminum honeycomb, magnesium oxide, PU, etc. | |||
| Connection | Aluminum alloy extrusion (2mm gap) | Aluminum alloy extrusion (no silicone system) | Aluminum alloy extrusion (8mm gap) | |
| Fire Resistance | Aluminum alloy extrusion (8mm gap, 60 min fire resistance) | |||
Multi-choice outer skins for wall & ceiling panel:
- Powder-coated galvanized steel sheet.
- Powder-coated aluminum alloy sheet.
- Stainless steel sheet (wire-drawing/mirror finish).
- Melamine high pressure laminated (HPL) sheet.
Features:
- Resistant to chemical attack, abrasion, and scratches
- Anti-static PE coating face sheet
- Pre-assembled opening for light fixture and filters

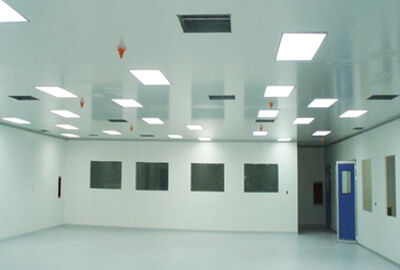

Applications: Pharmaceutical clean room, electronic clean room, hospital operating room, food processing clean room, office partition, etc.
