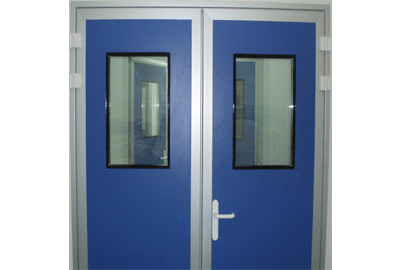

Cleanroom Melamine Resin Door
| Name | Material | Remarks |
| Doorframe and door plank edge covering | 2.0mm thick aluminum profile | Surface treatment:Oxidization |
| Door panel | 5.0mm thick melamine resin plate | Fire resistance |
| Inside panel | Fillings: paper honeycomb,rockwool aluminum honeycomb | Flame retardant (optional) |
| Closer | GMT | Grown |
| Observation window | 5mm double hollow tempered glass arc window | 0.8mm lining plate of stainless steel, size: 386mm×586mm arc |
| Locks | ARCHIE toggle lock | |
| Sweeping strip | Sweeping strip of automatic lift | Good elasticity, permanent |
| Surface treatment | anti-static coating for surface | Color never fadeless, anti-static coating for surface, color can be customized |
| Hinge | Special Aluminum alloy hinge | without external screw |
| Other parts | Stainless steel hinge, silicone seal | |
| General size | Single door: 800mmx2100mm, 900mmx2100mm, 1000mmx2100mm | Door size can be customized according to customer’s requirements |
| Double door: 1200mmx2100mm, 1500mmx2100mm, 1800mmx2100mm |
Features: Fireproof, durable, beautiful appearance, neat, flush with wall panels, easy to clean, good tightness.
Applications: Melamine Resin Doors are widely used in cleanrooms of pharmaceuticals, food, cosmetics, and electronics manufacturing industries. They are well flushed with the wall panels.
