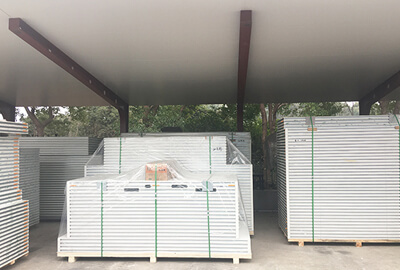

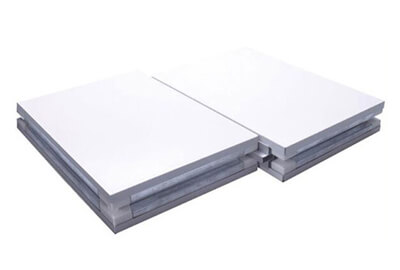

Cleanroom PU Panels
| General Performance | Wall Thickness | 50mm, 60mm, 75mm, 100mm | ||
| Regular Width | 1160mm, 1180mm, 900mm, Non-standard (customized) | |||
| Max Height | 8000mm, Non-standard (customized) | |||
| Main Material | Panel Material | PE, Anti-static, PVDF, Salinization, Stainless steel, Nanometer catelyst antibacterial plate, PVC coating | ||
| Filling Material | PU | |||
| Connection | Aluminum alloy extrusion (2mm gap) | Aluminum alloy extrusion (no silicone system) | Aluminum alloy extrusion (8mm gap) | |
| Fire Resistance | Aluminum alloy extrusion (8mm gap, 60 min fire resistance) | |||
Multi-choice outer skins for PU sandwich panels:
- Powder-coated galvanized steel sheet.
- Powder-coated aluminum alloy sheet.
- Stainless steel sheet (wire-drawing/mirror finish).
- Melamine high pressure laminated (HPL) sheet.
Features:
- Made of steel rolled sheet with coating for face panel.
- Inside filling material: PU.
- Pre-embedded PVC conduit for wire.
- Pre-embedded opening for lighting fixture and filters.
Application: Pharmaceutical clean room, electronic clean room, hospital operating room, food processing clean room, office partition, etc.
