Brief Description:

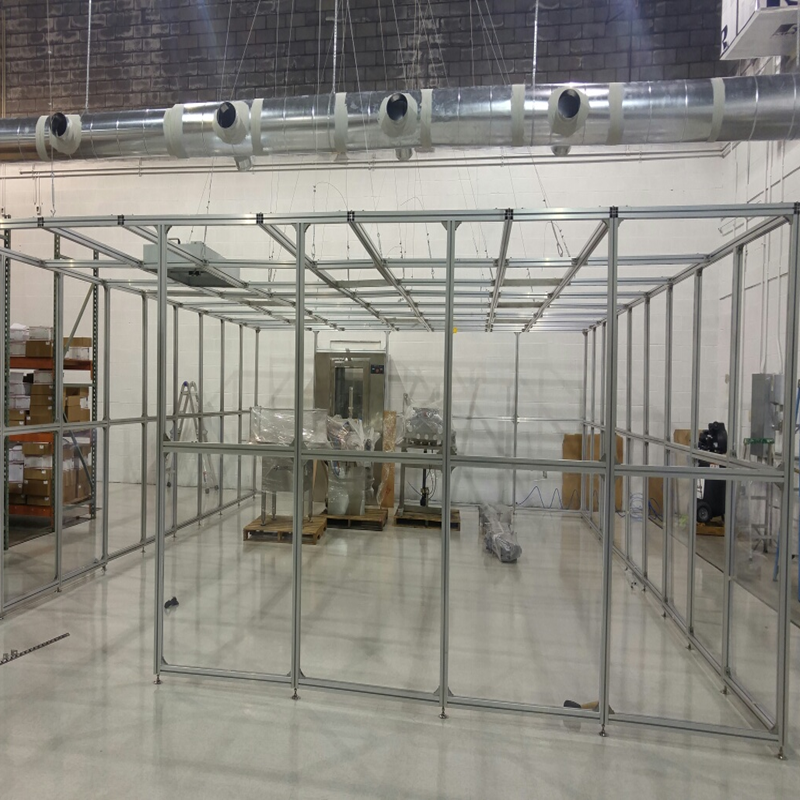

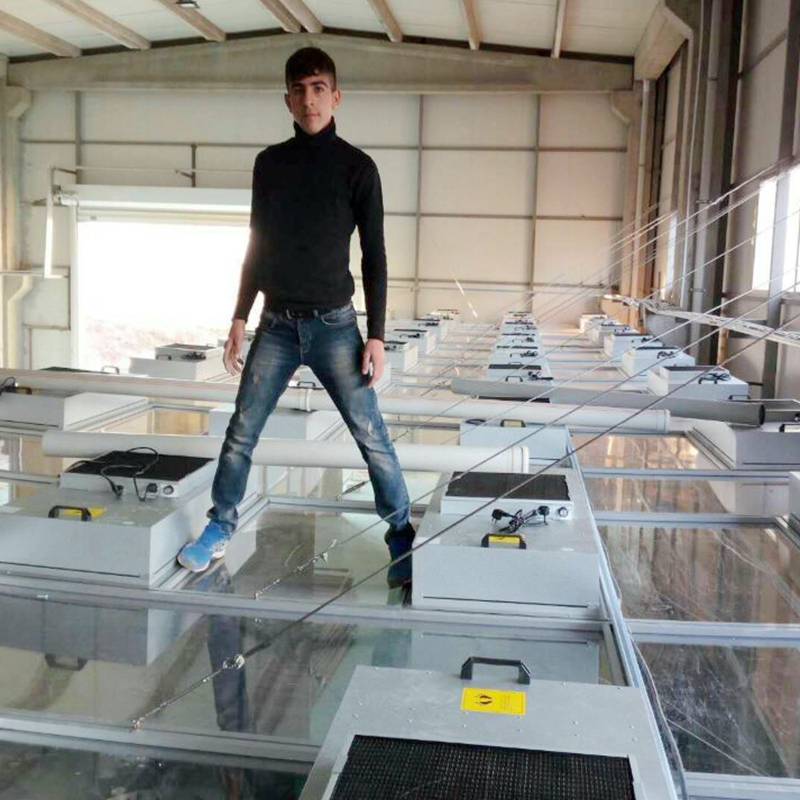

Product formulation 1. Frame: Industrial aluminum (or stainless steel square pass, iron square pass spray) as the frame is stable, beautiful, does not rust, and does not produce dust; 2. Anti-static vertical curtain: Anti-static vertical curtain (or acrylic board) is used around, with good anti-static effect, high transparency, clear grid, good flexibility, no deformation, and not easy to aging; 3. The fan filter unit FFU: adopts Singapore PCI centrifugal fan, which has the characteristics of long life, low noise, maintenance-free, low vibration, and infinitely variable speed. The fan is of reliable quality, long working life, and unique air duct design. , Greatly improve the efficiency of the fan and reduce the noise! The internal purification level can reach 100-100K; it is especially suitable for areas with high local purification requirements in the workshop, such as the assembly line operation area. 4. The interior uses a special purification lamp for the purification room, which does not produce dust;

Product Detail

Product Tags

More models for your option or customized size is acceptable.

Model YN-CS-23B YN-CS-34A YN-CS-34B YN-CS-68C
External Size(W×D×H)mm 2100×3100×2590 3100×4100×2590 3100×4100×2590 6100×8100×2590
Internal Size(W×D×H)mm 2000×3000×2240 3000×4000×2240 3000×4000×2240 6000×8000×2240
Clean Class Level 1000Class(ISO6) 100Class(ISO5) 1000Class(ISO6) 10000Class(ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um ≤5um
Light 40W×2 40W×4 40W×4 40W×8
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz

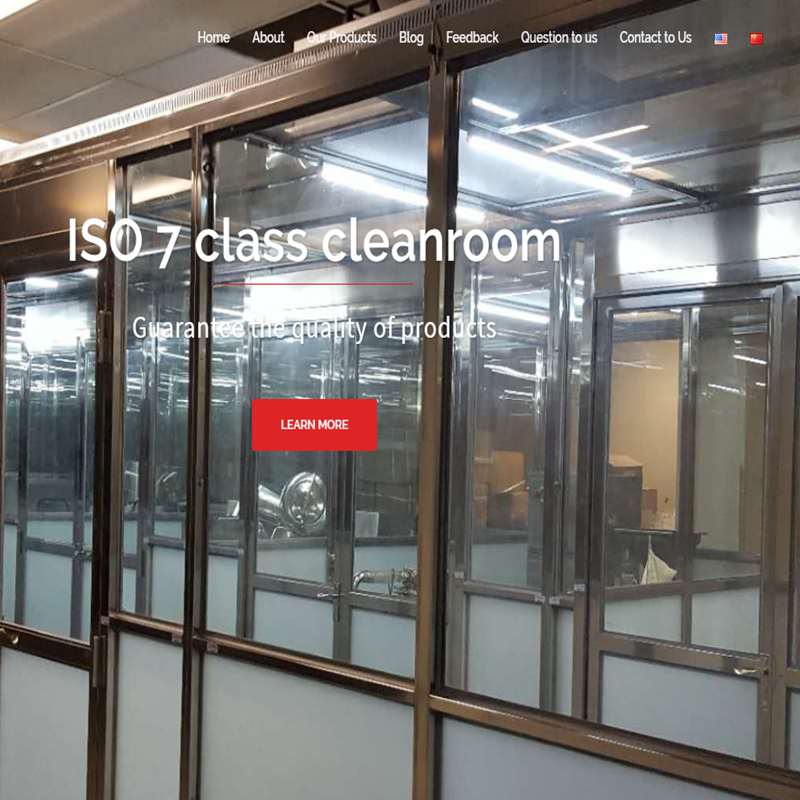

Material Framework: Epoxy powder coated steel/ Stainless steel/Aluminum

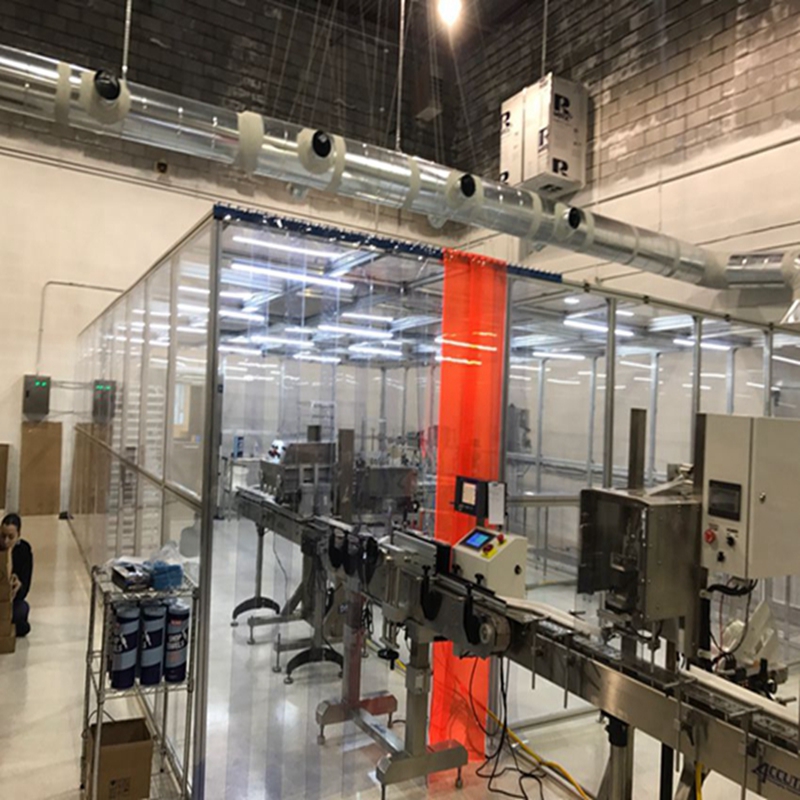

Wall: Anti-static strip curtain/Soft air curtain/Plexiglas

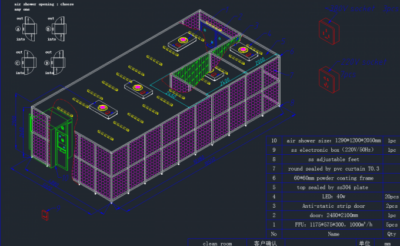

Pre assembly before shipment
