High Temperature Resistance HEPA Filter
Features of foldable high temperature and high efficiency filter
The high-efficiency and high-temperature-resistant filter uses a partition design. The corrugated partition can accurately maintain the spacing of the pleats and maximize the use of filter materials with minimal resistance. 180 pleats on both sides of the filter material are folded to form a wedge-shaped pleated layer. When the filter material is bent, there are two indentations to make it form a wedge-shaped box pleated layer at the end of the partition. The wedge-shaped box pleated layer can be Prevent damage to the filter material.

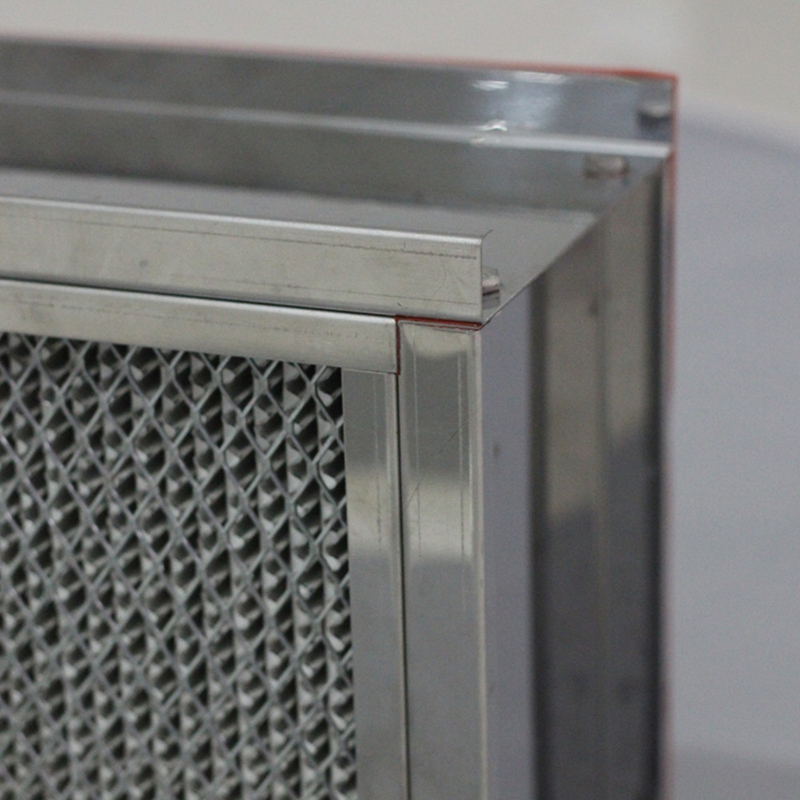

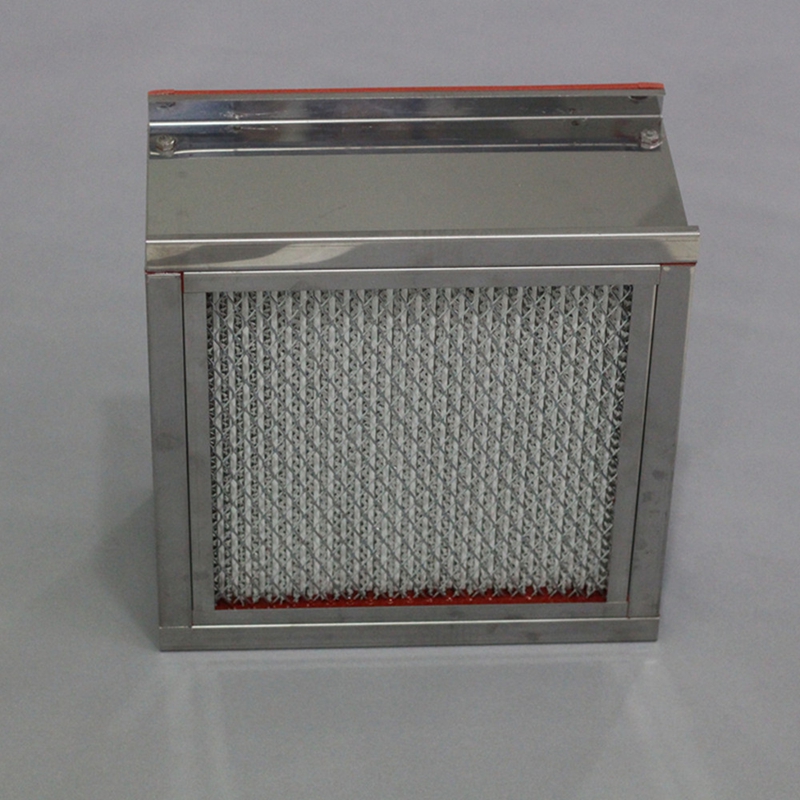

Folding high temperature resistant high efficiency filter
Stainless steel frame.
Sealant: high temperature resistant silica gel.
Sealing gasket: glass fiber (frsi), silicone rubber (kseries).
Laser counting efficiency one by one: efficiency class: H13 (EN1822).
Maximum temperature resistance for continuous operation: 350℃ (frsi)
