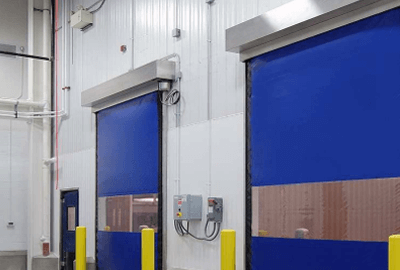

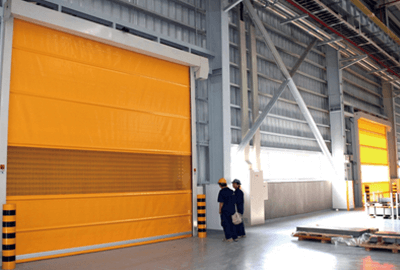

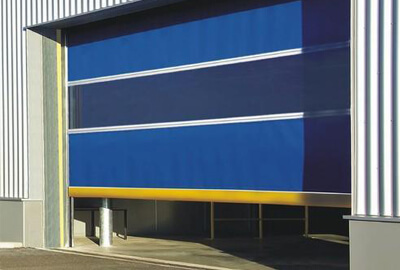

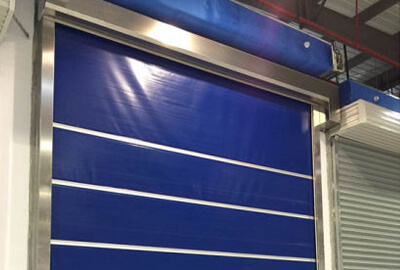

Cleanroom Fast Speed PVC Rolling Door
| Door material | Door frame material: 2.0mm thick cold-rolled sheet steel, made from the folding processing and high-quality paint process, colors can be closed; 4. 0mm thick silver industrial aluminum alloy column or stainless steel column. |
| Curtain material | High density PVC coating hot melting fabric, material thickness 0.8mm-1.0mm, various colors are available. |
| Curtain tensile strength | 175KN/m |
| Motor performance | Professional brake motor, power 0.55-1.5KW, power supply 220v/380V, braking voltage 220V |
| Control system | Microcomputer frequency conversion control electric box(Mitsubishi CPU). |
| Control voltage | Safe low voltage 24VDC |
| Opening speed | 1. 5-0.8m/s (variable frequency speed regulation) |
| Fire rating | German standard MZD/NBL fire retardant. |
| Operating temperature | -10℃+70℃/super cold-resistant region-40℃ |
| Transparent windows | PVC transparent soft board, material thickness 1.00mm, increasing security and management convenience,matched with overall horizontal transparent window |
| Wind-proof ability | 25m/s with aluminium alloy windbreak strips |
| Sealing performance | 25m/s with aluminium alloy windbreak strips |
| Safety configuration | Standard infrared photoelectric protection, warning lights, anti-collision column, power-cut manual rocker. |
Door size: Customized.
Application: Fast Speed PVC Rolling Door is widely used in a clean room, workshop or warehouse at the goods entrance.
